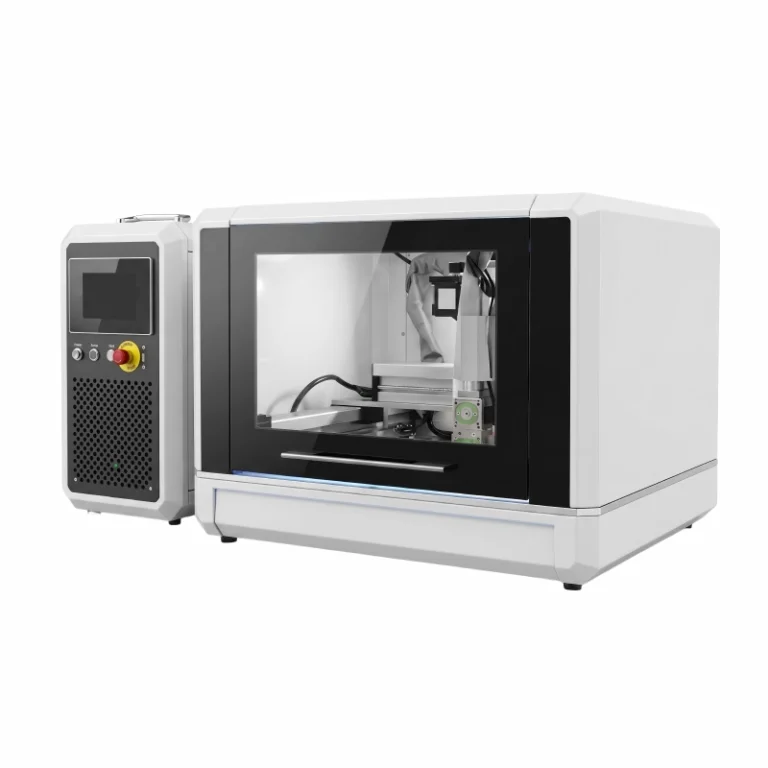

DT-F-300-DL series desktop fiber laser cutting machine is a fully enclosed compact metal cutter, available in 800W, 1200W, 1500W, and 2000W power options. It combines precision cutting and engraving in one machine, suitable for gold, silver, platinum, stainless steel, copper, aluminum, and other metal materials. With high cutting accuracy, smooth edges, safe operation, and low maintenance, it is ideal for jewelry studios, craft workshops, advertising shops, and small metal processing businesses.
Product Application
Widely used in DIY projects, electronics, hardware processing, designer studios, education, R&D, advertising, and gift customization.
Product Description
1. Precise Metal Cutting: Delivers up to ±0.1 mm cutting accuracy with smooth edges and less post-processing.
2. Adjustable Cutting Height: Handles flat, irregular, and shaped metal plates with stable height adjustment.
3. Stable Air-Cooled Laser: Built with an air-cooled laser source for reliable output and lower maintenance.
4. Cutting + Engraving in One: Supports adjustable power for metal cutting, text engraving, pattern marking, and fine details.
5. Low Gas Consumption: Achieves clean cuts with compressed air or nitrogen at 0.8 MPa, helping reduce daily operating costs.
Product Functions
- EU Safety Model: Available with an EU safety standard version for safer and more reliable daily operation.
- Built In Protection: Includes a three-color status indicator light, door safety interlock, and fully enclosed guide rails for safer machine use.
- Space Saving Design: Compact desktop design saves workshop space and fits easily into jewelry studios, craft workshops, and small metal processing shops.
- Adjustable Height System: Equipped with an industrial-grade height adjustment system for flat sheet cutting, deformed sheet cutting, and engraving operations.
- Mobile App Control: Draw or import cutting graphics directly on your mobile phone for easier operation and faster cutting setup.
- Low Maintenance Use: The fully enclosed structure supports safer operation, with no need to replace laser gas or frequently adjust the optical path.
Product Parameters
| Â | DT-F-30-DL800 | DT-F-30-DL1200 |
|---|---|---|
| Model Series | DeskLite Cutter Series | DeskLite Cutter Series |
| Output Power | 800W | 1200W |
| Type | Continuous Wave 1070nm±10nm | Continuous Wave 1070nm±10nm |
| Cooling Method | Air Cooled | Air Cooled |
| Processing Material | Aluminum, Copper, Stainless Steel Metal Materials | Aluminum, Copper, Stainless Steel Metal Materials |
| Effective Cutting Size | 300mm × 300mm | 300mm × 300mm |
| Fixed Way | Manual Edge Clamping And Jig Support | Manual Edge Clamping And Jig Support |
| Z-axis Travel | 40mm Adjustable Height | 40mm Adjustable Height |
| Position Accuracy | ±0.03mm | ±0.03mm |
| Repeatability | ±0.01mm | ±0.01mm |
| Cutting Gas Source | Air, Nitrogen, Oxygen | Air, Nitrogen, Oxygen |
| Empty Shift Acceleration | 0.3G | 0.3G |
| Voltage | Single-phase 220V 50/60Hz | Single-phase 220V 50/60Hz |
| Overall Warranty | 1 Year Except Wearing Parts | 1 Year Except Wearing Parts |
| Weight | 56kg | 60kg |
| Cutting Thickness CS/SS | ≤2mm Air | ≤3mm Air |
| Cutting Thickness AL | ≤1.5mm Air | ≤2mm Air |
| Cutting Thickness Copper | ≤1mm Air | ≤1.5mm Air |
Product Showcase
FAQs
1. What materials can this desktop metal laser cutting machine process?
It can cut and engrave common metal materials such as stainless steel, carbon steel, aluminum, copper, gold, silver, and platinum, depending on the laser power and material thickness.
2. Can I control the machine from a mobile phone?
Yes. You can draw or import cutting graphics on your mobile phone, then send them to the machine for cutting, making operation easier and more convenient.
3. Is the machine safe for daily workshop use?
Yes. It is available in an EU safety standard version and can be equipped with a three-color status indicator light, door safety interlock, fully enclosed guide rails, and a fully enclosed machine structure.
4. Does this machine require frequent maintenance?
No. The fiber laser system has low daily maintenance needs, with no laser gas replacement and no need to frequently adjust the optical path, making it suitable for regular workshop use.
